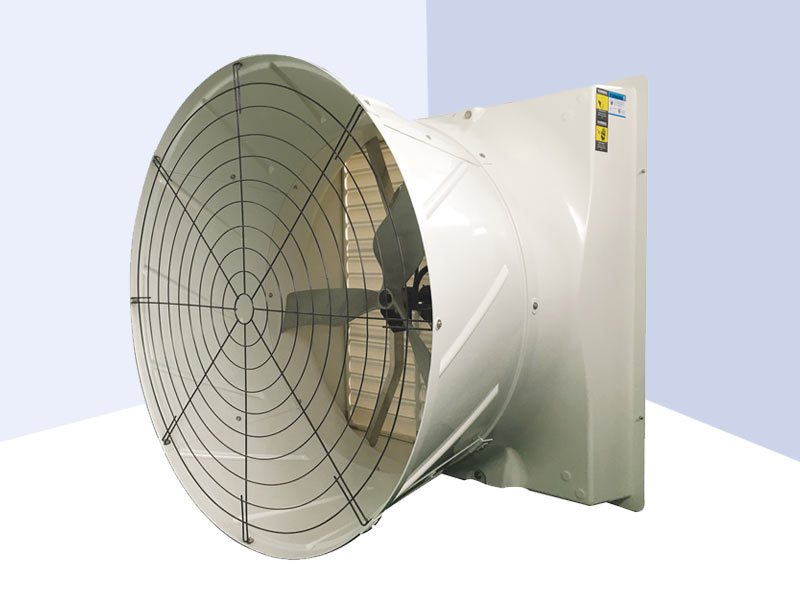

Fiberglass fan is widely used in corrosive gas place like piggery farm, poultry farm.
Specification:
UV resistant fiberglass housing
Fiberglass cone standard on all fans, can improve 10% efficiency
Aluminum blade High technology, reduce the noise
High quality imported pillow block bearings
Automotive style belt tensioner
Higher quality motor will be available
| Model | Propeller Dia. | Number of blades | Rated Speed | Air Capacity | Rated Power | Drive Mode | Voltage Frequency/Phase | Complete Size | Size With Cone |
| RT-1630 | 1390/(55") | 3 Aluminum blade | 530 | 55000 | 1.5 | Belt | 380V/220V 50HZ/60HZ | 1630*1630*1470 | 1540*1540 |
| 600 | 46000 | 1.1 | Belt | 1530*1530*1220 | 1460* 1460 | ||||
| 646 | 47500 | 1.5 | Belt | 1530*1530*1220 | 1460* 1460 | ||||
| RT-1530 | 1290/(51") | 850 | 22000 | 0.55 | Belt | 1170*1170* 1200 | 1080*1080 | ||
| RT-1170 | 900/(36" ) | 924 | 24500 | 0.75 | Belt | 1170*1170*1200 | 1080* 1080 | ||
| RT-810 | 650/(24") | 4 Aluminum blade | 1400 | 12000 | 0.35 | Direct | 810*810*1000 | 740*740 | |
| RT-660 | 460/(18") | 5 Aluminum blade | 1400 | 7400 | 0.25 | Direct | 660*660*780 | 580*580 | |
